High Temperature Radar Level Meter Digital Radar Gauge Measuring Level Rod
1 Piece/Pieces
MOQ
Negotiable
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: vacorda
Certification: CE/ISO9001
Model Number: HBLN
High Light:

guided wave radar level transmitter

,

non contact type radar level transmitter

Payment & Shipping Terms
Packaging Details: wooden box
Supply Ability: 110 Piece/Pieces per Week
Specifications
Product Name: High Temperature Radar Level Meter Digital Radar Gauge Measuring Level Rod
Display: 4 Digital LCD
Power Supply: DC20 ~32V >=60mA
Medium Temperature: -40~80°C
Accurancy: 0.2% (full Span )
Brand Name: Vacorda
Product Description

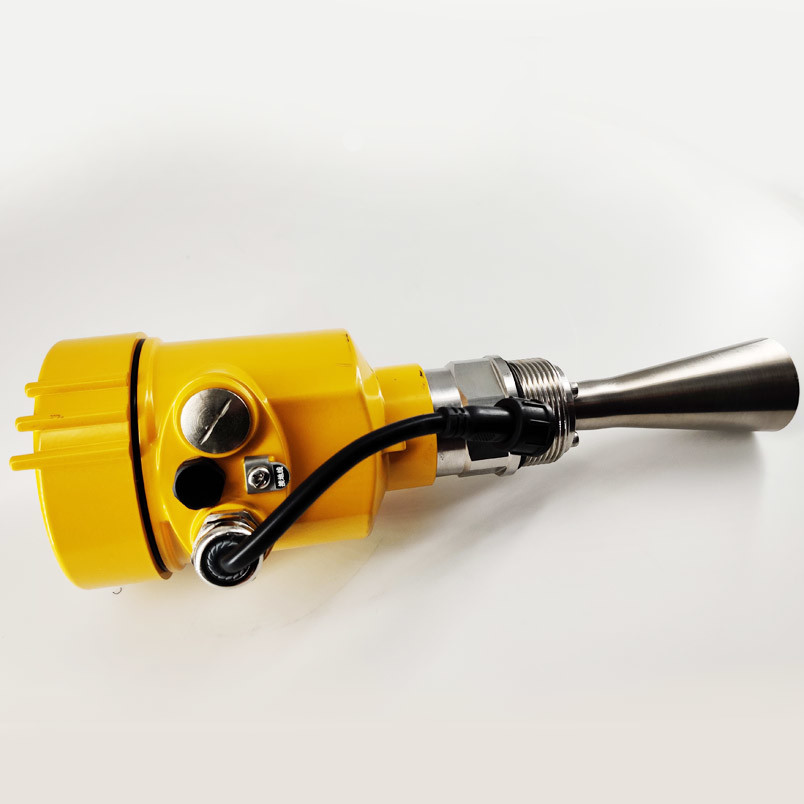

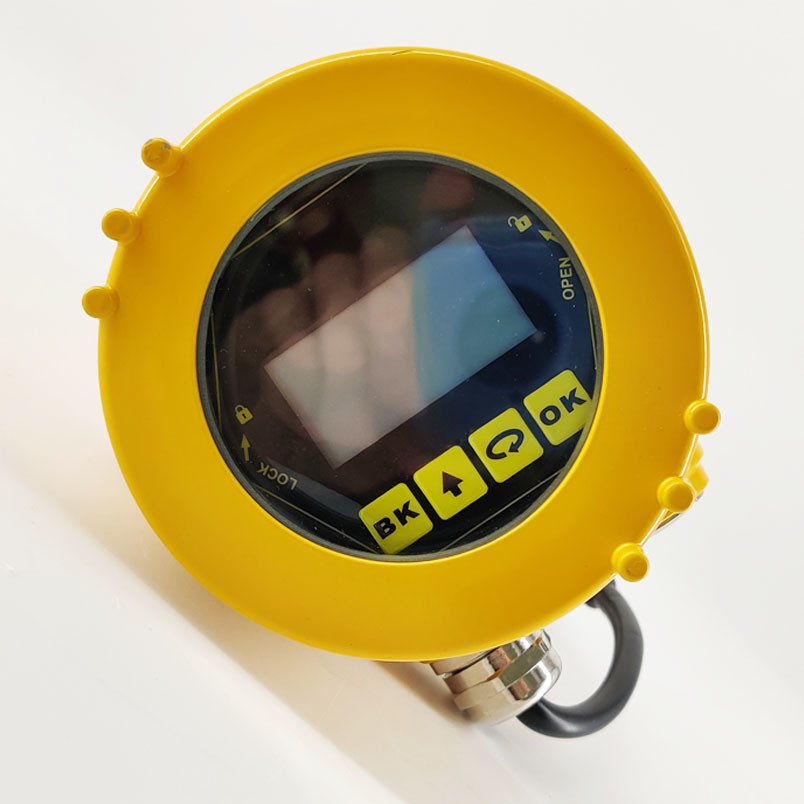

High Temperature Radar Level Meter Digital Radar Gauge Measuring Level Rod

High Temperature Radar Level Meter Digital Radar Gauge Measuring Level Rod 0



Product Description

Radar liquid level sensor technology transmits a high frequency electromagnetic wave pulse typically in the microwave spectrum, and receives the wave reflected off a liquid surface. The time taken for the microwave pulse to traverse the distance between the transmitting antenna and target surface, and back again to the receiving antenna is measured.



The distance (d) between the radar liquid level sensor and the liquid surface can be calculated by dividing the time taken (t) by two, and multiplying that by the speed of light (c), i.e. d = c ∙ t / 2. The liquid level in a tank (LT) can then be determined by subtracting distance (d) from the height of the radar level sensor (HT), i.e. LT = HT – d.



Features:

1. No media contact for vertically mounted type, so flexibility for use on different corrosive media, thick fluids, slurries, wastewater
2. High temperature fluid compatibility for vertically mounted types, since no sensitive components make contact with the fluid
3. High accuracy due to high frequency pulse wave and precise transit time time measurement
4. Sealed pressurised vessel will not affect performance
5. Longer range than ultrasonics
6. Not affected by surface changes such as air temperature, which cause problems with ultrasonics

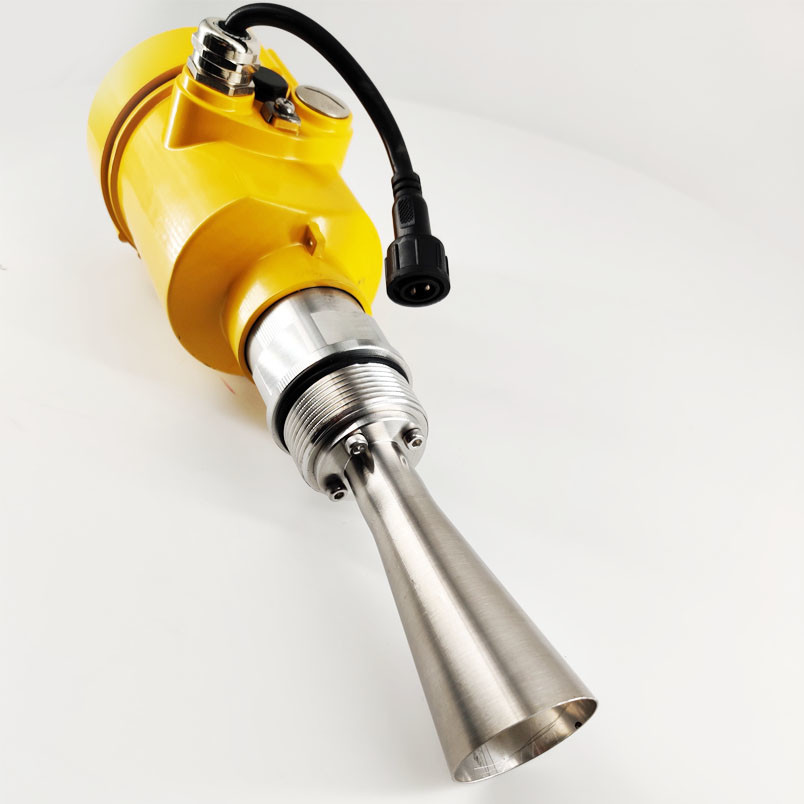

High Temperature Radar Level Meter Digital Radar Gauge Measuring Level Rod 1High Temperature Radar Level Meter Digital Radar Gauge Measuring Level Rod 2

♦903

903.1.jpg Suitable for Medium

Solid material, Strong dust,easy to crystallize, condensation occasion

Measuring Range 70m
Frequency

26GHz

Accuracy

±15mm

Process Temperature

-40℃~130℃(Standard type)
-40℃~250℃(High temperature type)

Process pressure -0.1~4.0 MPa (Flat flange)
-0.1~0.3MPa (Universal flange)
Signal output

4~20mA /HART (2-wire / 4-wire)

RS485/ Modbus

Power Source

Two-wire (DC24V)

Four-wire(DC24V/AC220V)

Connection

Universal Flange

Protection Grade

IP67

Explosion-proof Grade

Exia IIC T6 Ga/Exd IIC T6 Gb

♦904

904.jpg Suitable for Medium

Solid material, Strong dust,easy to crystallize, condensation occasion

Measuring Range 80m
Frequency

26GHz

Accuracy

±15mm

Process Temperature

-40℃~130℃(Standard type)
-40℃~250℃(High temperature type)

Process pressure -0.1~0.3MPa
Signal output

4~20mA /HART (2-wire / 4-wire)

RS485/ Modbus

Power Source

Two-wire (DC24V)

Four-wire(DC24V/AC220V)

Connection

Thread, Universal Flange

Protection Grade

IP67

Explosion-proof Grade

Exia IIC T6 Ga/Exd IIC T6 Gb


♦906

906.jpg Suitable for Medium

Hygienic liquid storage, Corrosive container

Measuring Range 20m
Frequency

26GHz

Accuracy

±3mm

Process Temperature

-40℃ ~ 130℃

Process pressure -0.1~4.0MPa
Signal output

4~20mA /HART (2-wire / 4-wire)

RS485/ Modbus

Power Source

Two-wire (DC24V)

Four-wire(DC24V/AC220V)

Connection

Flange

Protection Grade

IP67

Explosion-proof Grade

Exia IIC T6 Ga/Exd IIC T6 Gb



High Temperature Radar Level Meter Digital Radar Gauge Measuring Level Rod 6

Ultrasonic level gauge quotation
2. Environmental conditions for the use of ultrasonic level gauges
1. Medium pressure: Acoustic waves cannot propagate in vacuum, but can propagate in micro-vacuum. However, we recommend not to use it in any vacuum environment, that is, under a slight vacuum, because it may cause abnormal operation or large errors of the ultrasonic
2. Medium humidity: In dry or saturated humidity air, the speed of sound will change by 2%. The air in the water vapor contains a variety of gases, which affect the speed of ultrasonic emission
3. Space: there are obstacles or pipes under the sound wave, which affect the ultrasonic emission and cause signal loss
4. Foam: A large number of bubbles produced by the measured medium can easily absorb sound waves or interfere with sound emission. 5. Air flow: negligible when the wind speed is less than 50km/h. When the wind speed is greater than 50km/h, it will affect the measurement results



1. What is the ultrasonic level gauge?
Ultrasonic level gauge is a monitoring instrument for measuring liquid height, tank height and material position. The instrument itself can adopt two-wire, three-wire or four-wire technology. The two-wire system is: the power supply and signal output are shared; the three-wire system: the power supply circuit and the signal output circuit are independent. When using DC 24v power supply, a 3-core cable can be used, and the negative power supply terminal and the negative signal output terminal share one core; four-wire system: when using AC 220v power supply, or when using DC 24v power supply, the power supply circuit and the signal output circuit are required to be completely isolated , A 4-core cable should be used. DC or AC power supply, 4 ~ 20mADC, high and low switching output.



Household ultrasonic level gauge

2. What are the performance characteristics of the ultrasonic level gauge?
Strong anti-interference performance. The upper and lower nodes can be set at will, online output can be adjusted, and displayed on site. Analog quantity, switch quantity, RS485 output are optional, convenient to interface with related facilities.
Use polypropylene waterproof shell. The shell is small and sturdy, with excellent chemical resistance. For inorganic compounds, no matter acid, alkali or salt solution, there is almost no destructive effect except strong oxidizing substances. Almost all solvents are insoluble at room temperature and can be used for alkanes, hydrocarbons, alcohols, phenols, and aldehydes. , Ketones and other media.
Non-toxic. It can be used for the installation of equipment in the pharmaceutical and food industries, and the maintenance is very convenient.
