Guided Wave Radar Type Level Transmitter No Corrosion For Civic Industry

1 Piece/Pieces
MOQ
Negotiable
Price
Guided Wave Radar Type Level Transmitter No Corrosion For Civic Industry
Features Gallery Product Description Request A Quote
Features
Specifications
Certificate: ISO9001:2000
Display: 4 Digital LCD
Power Supply: DC20 ~32V >=60mA
Medium Temperature: -40~80°C
Accurancy: 0.2% (full Span )
Material Of Shell: AL
Material Of Sensor: PVC Or PTFE
Delivery Time: 3~15 Days
After Service: Twelve Months
Port: Shanghai/shenzhen
High Light:

guided wave radar level transmitter

,

non contact type radar level transmitter

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: vacorda
Certification: CE/TUV/ISO9001/SGS
Model Number: HBLN
Payment & Shipping Terms
Packaging Details: wooden box
Supply Ability: 110 Piece/Pieces per Week
Product Description

Guided Wave Radar Type Level Transmitter

Guided Wave Radar Type Level Transmitter No Corrosion For Civic Industry

Product Description

Guided Wave Radar Type Level Transmitter application

Guided Wave Radar Type Level Transmitter details

This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 80 meters. Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.

Measurement Range

Guided Wave Radar Type Level Transmitter measurement range

Features:

1.Small antenna size, easy to install; Non-contact radar, no wear, no pollution.

2.Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.

3.Serious dust environment on the high level meter work has little effect.

4.A shorter wavelength, the reflection of solid surface inclination is better.

5.Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.

6.The measuring range is smaller, for a measurement will yield good results.

7.High signal-to-noise ratio, the level fluctuation state can obtain better performance.

8.High frequency, measurement of solid and low dielectric constant of the best choice.

Detailed Images

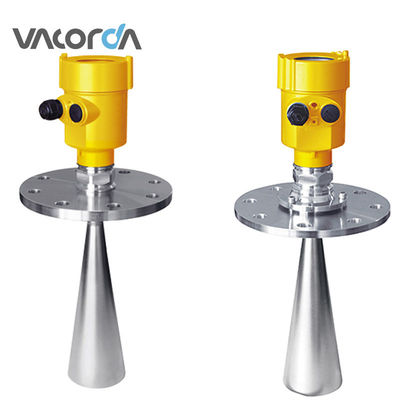

Guided Wave Radar Type Level Transmitter No Corrosion For Civic Industry 4

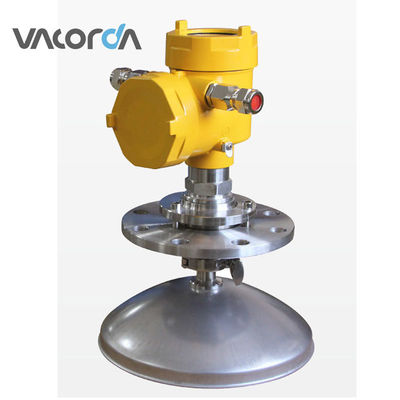

Guided Wave Radar Type Level Transmitter No Corrosion For Civic Industry 5Guided Wave Radar Type Level Transmitter No Corrosion For Civic Industry 6

♦903

903.1.jpg Suitable for Medium

Solid material, Strong dust,easy to crystallize, condensation occasion

Measuring Range 70m
Frequency

26GHz

Accuracy

±15mm

Process Temperature

-40℃~130℃(Standard type)
-40℃~250℃(High temperature type)

Process pressure -0.1~4.0 MPa (Flat flange)
-0.1~0.3MPa (Universal flange)
Signal output

4~20mA /HART (2-wire / 4-wire)

RS485/ Modbus

Power Source

Two-wire (DC24V)

Four-wire(DC24V/AC220V)

Connection

Universal Flange

Protection Grade

IP67

Explosion-proof Grade

Exia IIC T6 Ga/Exd IIC T6 Gb

♦904

904.jpg Suitable for Medium

Solid material, Strong dust,easy to crystallize, condensation occasion

Measuring Range 80m
Frequency

26GHz

Accuracy

±15mm

Process Temperature

-40℃~130℃(Standard type)
-40℃~250℃(High temperature type)

Process pressure -0.1~0.3MPa
Signal output

4~20mA /HART (2-wire / 4-wire)

RS485/ Modbus

Power Source

Two-wire (DC24V)

Four-wire(DC24V/AC220V)

Connection

Thread, Universal Flange

Protection Grade

IP67

Explosion-proof Grade

Exia IIC T6 Ga/Exd IIC T6 Gb


♦906

906.jpg Suitable for Medium

Hygienic liquid storage, Corrosive container

Measuring Range 20m
Frequency

26GHz

Accuracy

±3mm

Process Temperature

-40 ~ 130

Process pressure -0.1~4.0MPa
Signal output

4~20mA /HART (2-wire / 4-wire)

RS485/ Modbus

Power Source

Two-wire (DC24V)

Four-wire(DC24V/AC220V)

Connection

Flange

Protection Grade

IP67

Explosion-proof Grade

Exia IIC T6 Ga/Exd IIC T6 Gb
