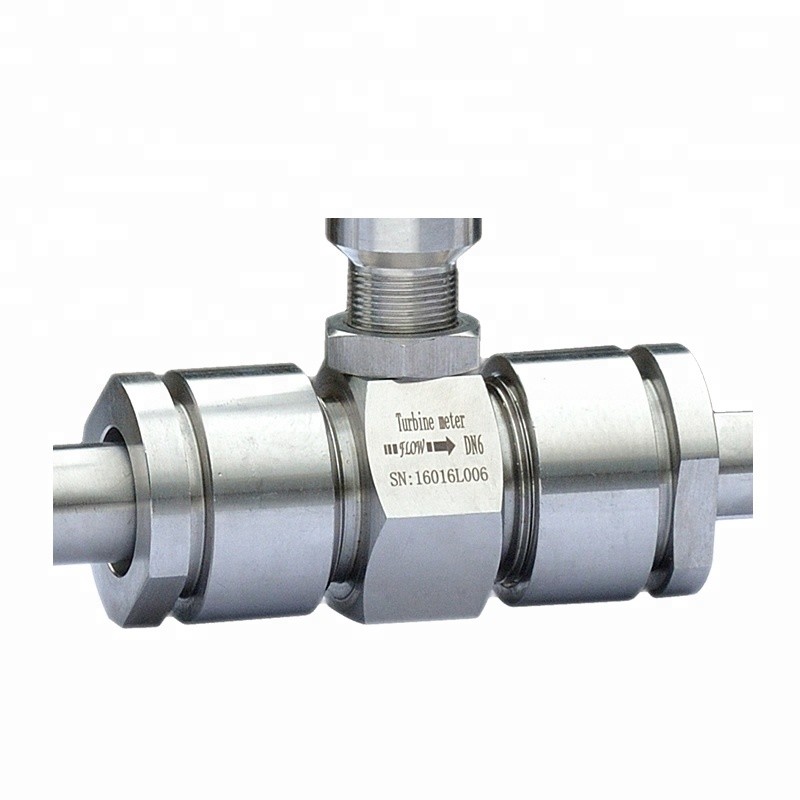

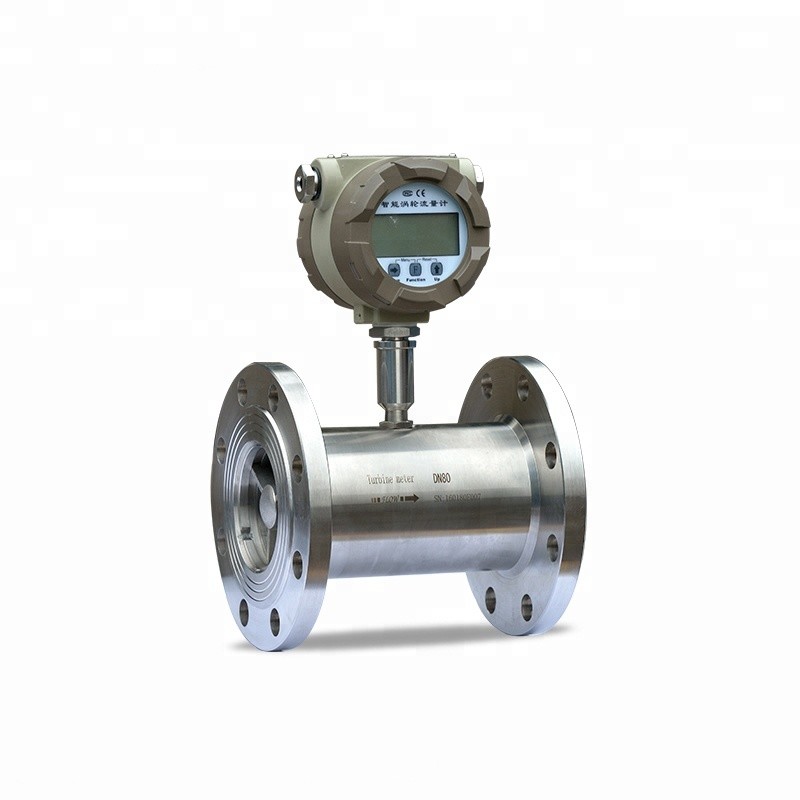

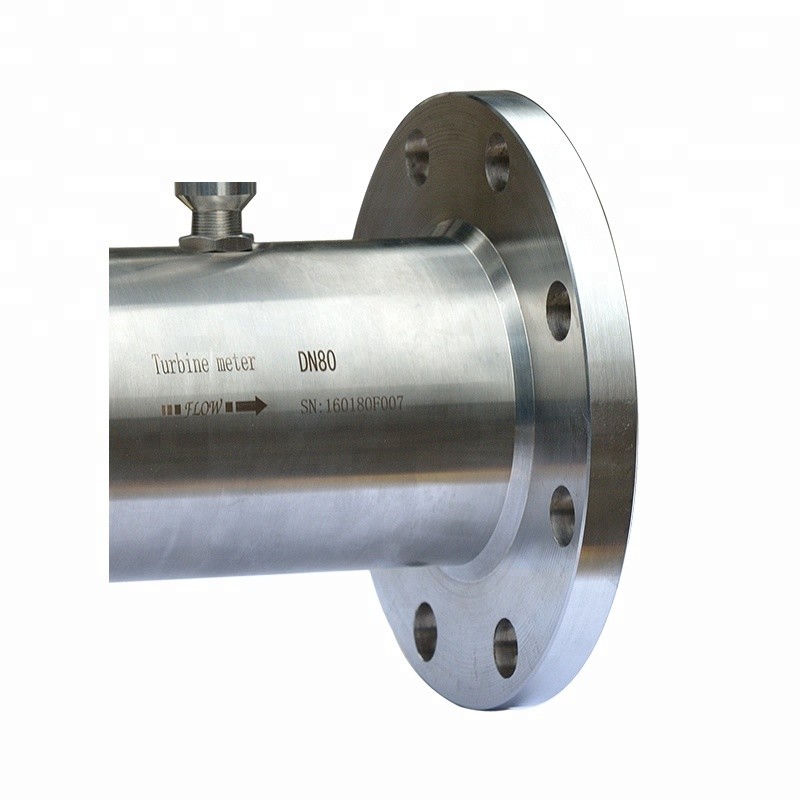

4-20mA output water turbine flow meter for liquid measurement

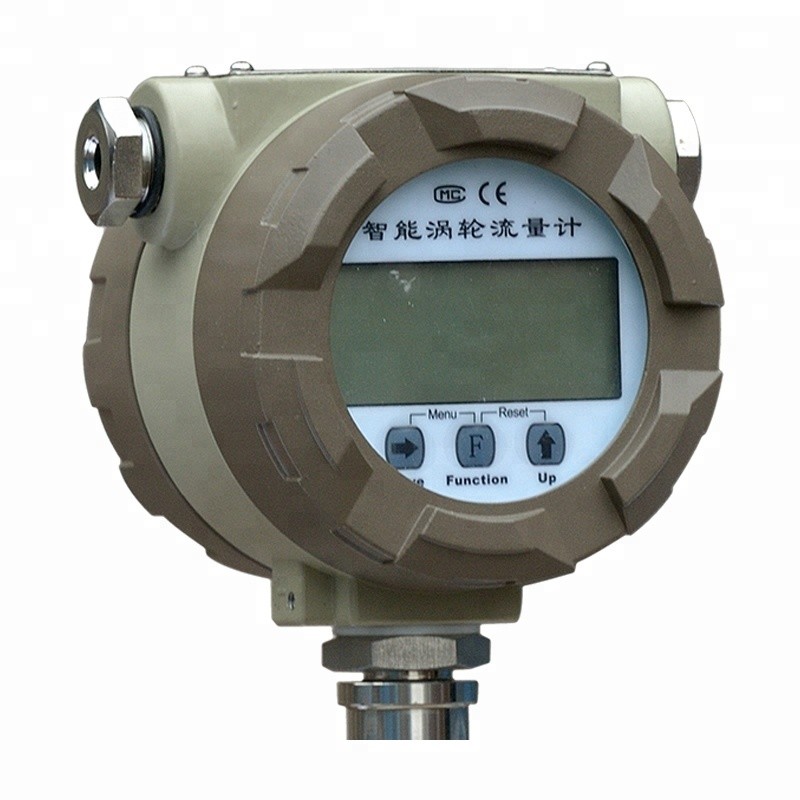

Turbine flow meter liquid flows through the turbine housing causing an internal rotor to spin. As the rotor spins, an electrical signal is generated in the pickup coil. This signal is converted into engineering units (liters, cubic meters, gallons etc.) on the local display where is applicable. Optional accessory modules can be used to export the signal to other equipment. It has the features, such as high accuracy, good repeatability, convenient installation/maintenance, simple structure etc.
Product Features
1. The sensor impeller adopts special alloy bearing, which is wear-resistant and has long precision retention time.
2. Simple and firm structure, easy to disassemble and clean
3. Multi-point nonlinear correction, high precision, data power-down for up to ten years
4. A variety of signal output, suitable for different occasions
Product Parameters
(1) Pressure: | PN16-PN63 |
(2)Output signal: | 4-20mA/RS485/HART |
(3) Medium: | Clean liquid,air |
(4)Operating temperature: | -20 ~ +120 °C |
(5)Measuring Range: | <1200m3/h |
(6) Material: | 304,316L,321 |
(7)Nominal diameter: | DN6-DN200 |
(8) Viscosity : | 5~400mpa.s |
(9) Accuracy: | 0.5,1.0,1.5 |
(10)Protection class: | IP65 |
Product Application
