2" electromagnetic flowmeter transmitter with display

Basic Information
Place of Origin: Sichuan, China (Mainland)
Brand Name: VACORDA
Model Number: HKLD
Minimum Order Quantity: 1 Piece/Pieces
Price: $150.00 - $350.00 / Pieces
Packaging Details: Wooden box
Supply Ability: 200 Piece/Pieces per Month
Product Name: 2" Electromagnetic Flowmeter Transmitter With Display Medium: Conductive Liquid
Power Supply: 220VAC/24VDC/Battery Output: 4-20mA /4-20mA + Hart
Material: Carbon Steel/SS304/SS316L Working Temperature: -30~180℃
Working Pressure: ≤2.5Mpa Connection Size: DN10~DN2400
Accuracy Class: 0.5/1.0 Protection Grade: IP65 / IP 68(optional)
Port: Shanghai/Shenzhen
High Light:

electromagnetic type flow meter

,

electromagnetic water flow meter

High accuracy sewage pipe electromagnetic flowmeter





Product Description



HKLD type intelligent electromagnetic flowmeter is a fully intelligent electromagnetic flowmeter developed by our company using the most advanced technology at home and abroad. Its electromagnetic converter core adopts high-speed central processing unit. The calculation speed is very fast, the precision is high, and the measurement performance is reliable.  The sensor adopts non-uniform magnetic field technology and special magnetic circuit structure, the magnetic field is stable and reliable, and the volume is greatly reduced, the weight is reduced, and the flowmeter is characterized by small flow.

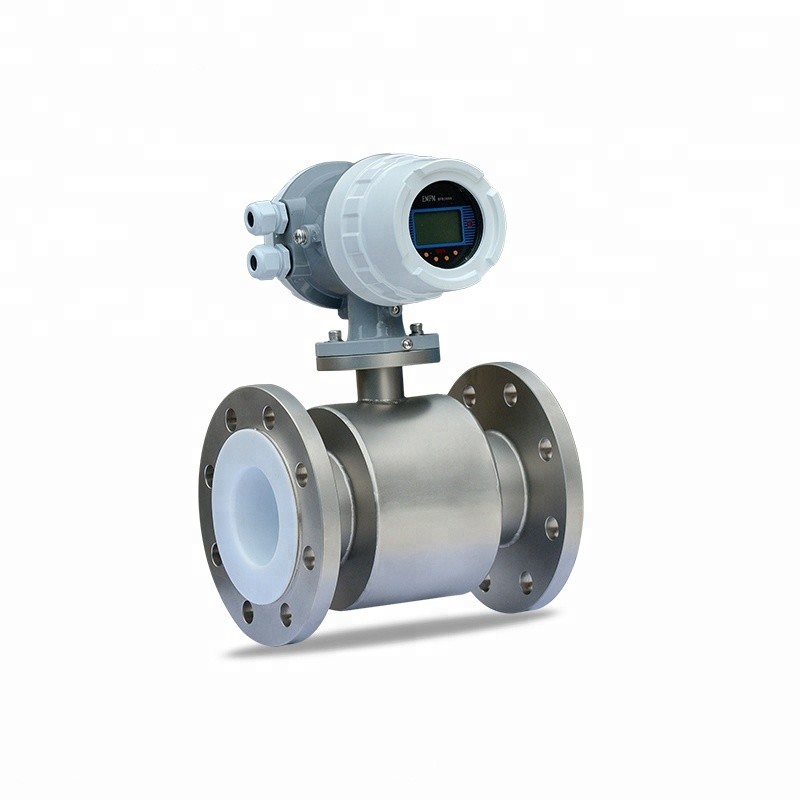

2" electromagnetic flowmeter transmitter with display 0



Product Parameters



Product Name

Electromagnetic Flowmeter

Repeatability error

+/-0.1%

Accuracy class

0.5 class, 1.0 class

Measured medium temperature

Common rubber lining: -20~+60 ° c

High temperature rubber lining: -20~+90 ° c

PTFE lining: -30~+100 ° c

High temperature vinyl lining: -30~+180 ° c

Rated working pressure

pipeline: DN10~DN65: ≤ 2.5MPa;DN80~DN150: ≤ 1.6MPa;

DN200~DN1200: ≤ 1.0MPa

Flow rate range

0.3~15m/s

Measured fluid conductivity

≥5μs/cm liquid

Output

4~20mA / 4~20mA + Hart

Electrode material

316L, titanium (Ti), tantalum (Ta), Hastelloy (H), Platinum (Pt) or other special electrode materials

Working power supply

85~265VAC / 24VDC / Battery

Straight pipe length

pipe: ≥ 5DN in the upper reaches, downstream of greater than or equal to 2DN

Connections

Flange

Protection grade

standard: IP65; IP68(optional)

Explosion-proof mark

mdllBT4



Detailed Images

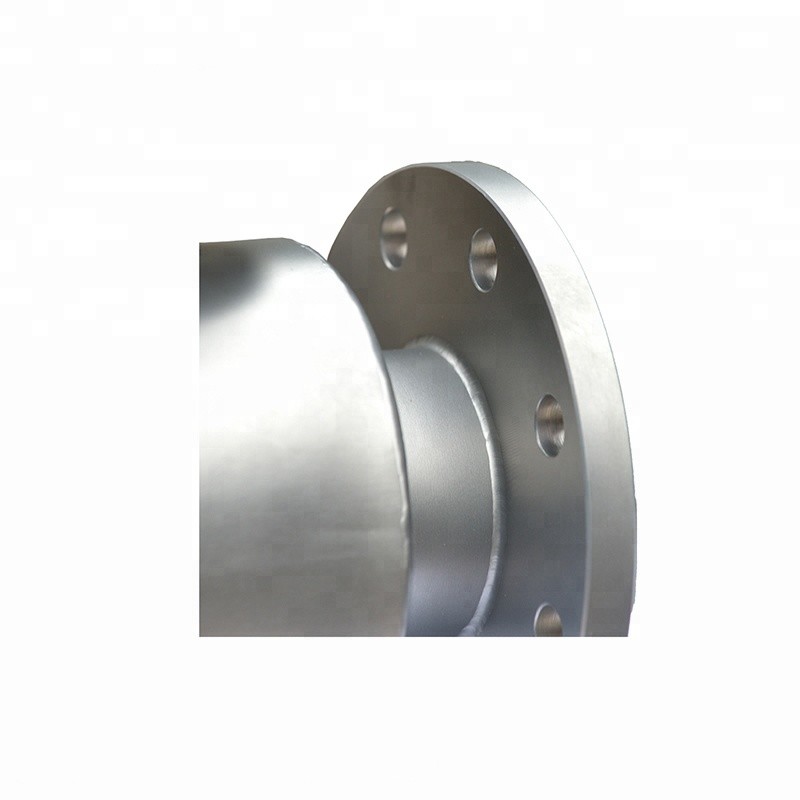

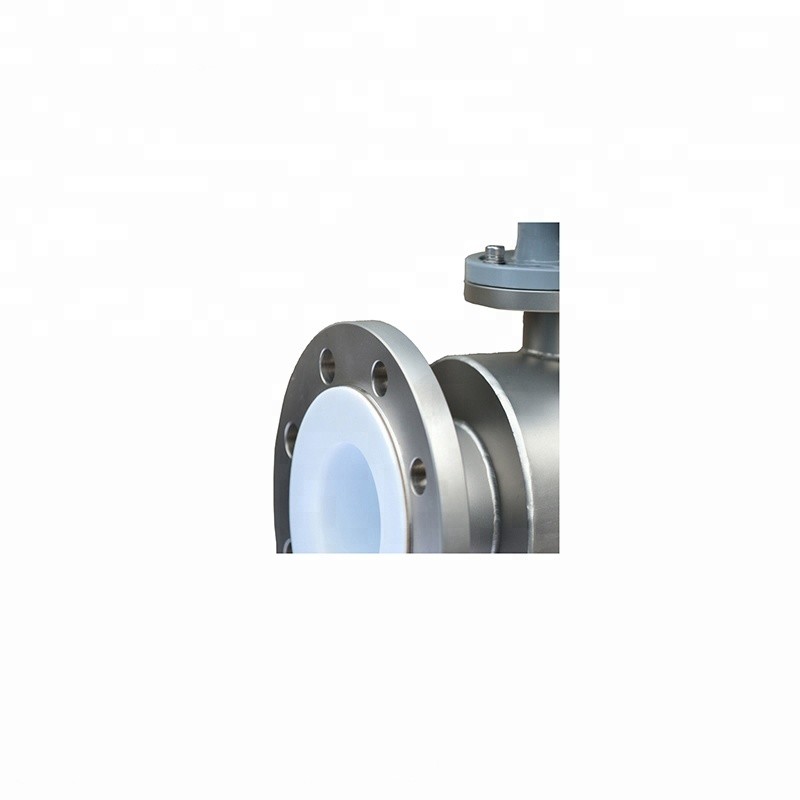

2" electromagnetic flowmeter transmitter with display 12" electromagnetic flowmeter transmitter with display 22" electromagnetic flowmeter transmitter with display 3
