Small Intelligent Water Gauge Radar Level Transmitter For Solid And Liquid
1 Piece/Pieces
MOQ
Negotiable
Price
Small Intelligent Water Gauge Radar Level Transmitter For Solid And Liquid
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: vacorda
Certification: CE/TUV/ISO9001/SGS
Model Number: HBLN
High Light:

guided wave radar level transmitter

,

non contact type radar level transmitter

Payment & Shipping Terms
Packaging Details: wooden box
Supply Ability: 110 Piece/Pieces per Week
Specifications
Product Name: Intelligent Water Gauge Radar Level Transmitter For Solid And Liquid
Display: 4 Digital LCD
Power Supply: DC20 ~32V >=60mA
Medium Temperature: -40~80°C
Accurancy: 0.2% (full Span )
Material Of Sensor: PVC Or PTFE
Product Description

Small Intelligent Water Gauge Radar Level Transmitter For Solid And Liquid

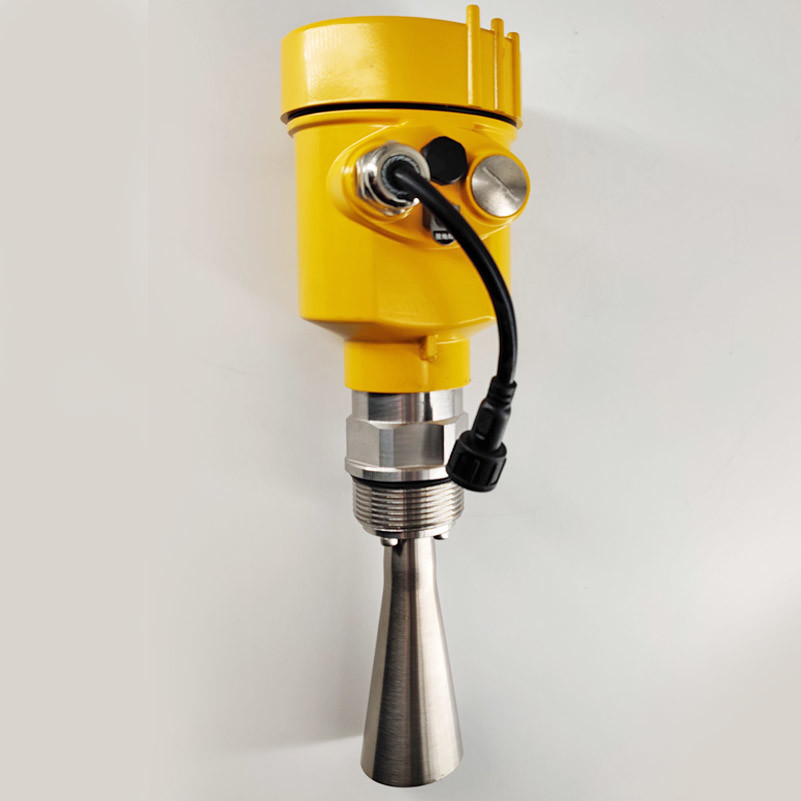

Small Intelligent Water Gauge Radar Level Transmitter For Solid And Liquid 0

Product Description

Radar liquid level sensor technology transmits a high frequency electromagnetic wave pulse typically in the microwave spectrum, and receives the wave reflected off a liquid surface. The time taken for the microwave pulse to traverse the distance between the transmitting antenna and target surface, and back again to the receiving antenna is measured.



The distance (d) between the radar liquid level sensor and the liquid surface can be calculated by dividing the time taken (t) by two, and multiplying that by the speed of light (c), i.e. d = c ∙ t / 2. The liquid level in a tank (LT) can then be determined by subtracting distance (d) from the height of the radar level sensor (HT), i.e. LT = HT – d.



Unlike ultrasonic sensors, the performance of a radar level sensor is not easily affected by temperature changes, humidity or vapour between the sensor and the liquid surface. This is because changes in air density only have a very small effect on the speed of electromagnetic waves. Also radar liquid level sensors can work in a vacuum, high pressures and high temperatures without any noticeable difference on measured transit time, so it can be used in applications where it is not possible to use ultrasonic based sensors.



Features:

1. No media contact for vertically mounted type, so flexibility for use on different corrosive media, thick fluids, slurries, wastewater
2. High temperature fluid compatibility for vertically mounted types, since no sensitive components make contact with the fluid
3. High accuracy due to high frequency pulse wave and precise transit time time measurement
4. Sealed pressurised vessel will not affect performance
5. Longer range than ultrasonics
6. Not affected by surface changes such as air temperature, which cause problems with ultrasonics

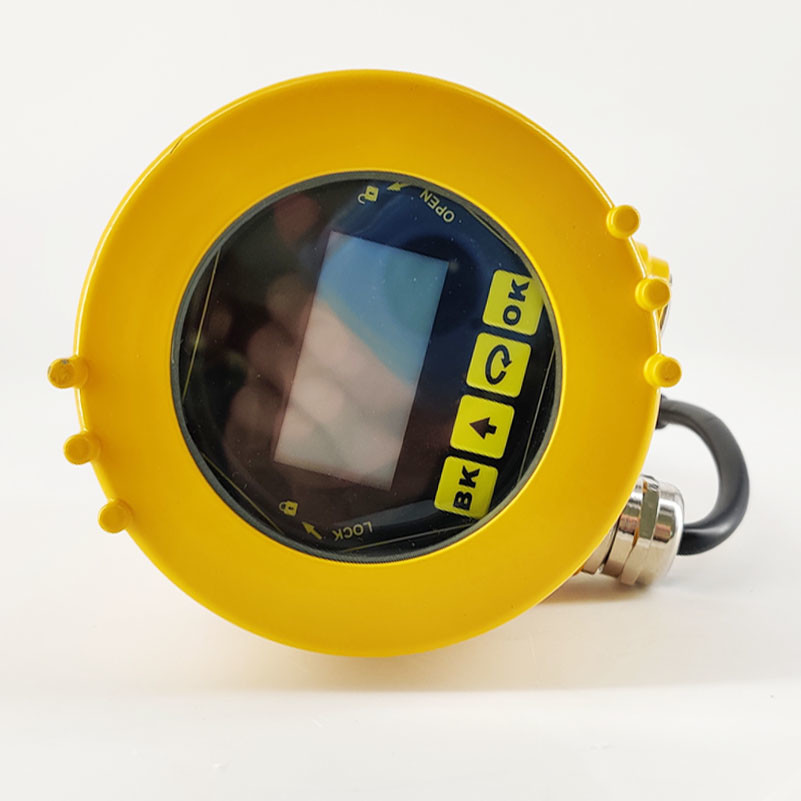

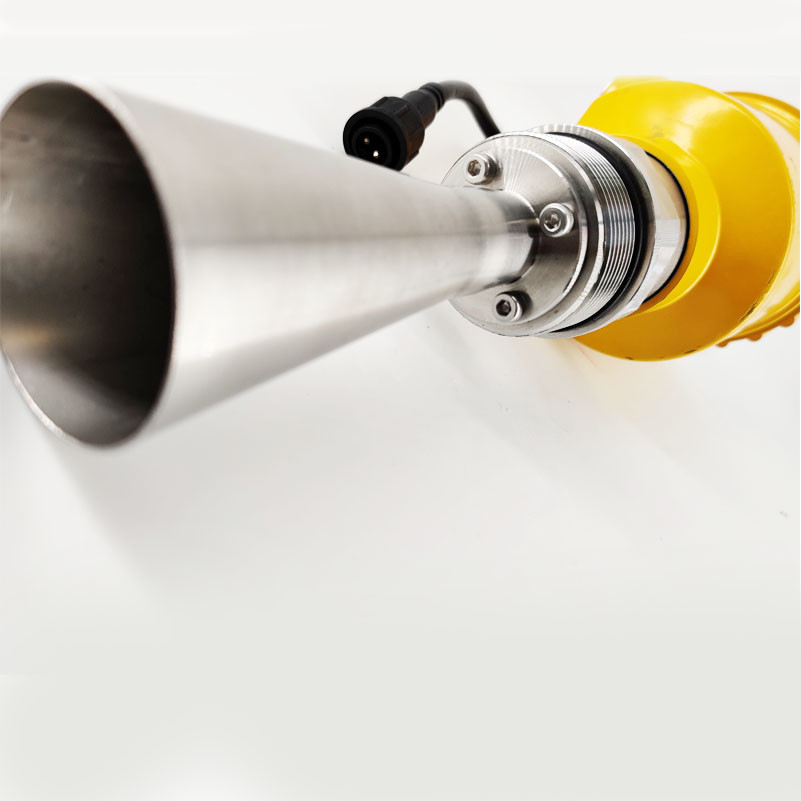

Small Intelligent Water Gauge Radar Level Transmitter For Solid And Liquid 1Small Intelligent Water Gauge Radar Level Transmitter For Solid And Liquid 2

♦903

903.1.jpg Suitable for Medium

Solid material, Strong dust,easy to crystallize, condensation occasion

Measuring Range 70m
Frequency

26GHz

Accuracy

±15mm

Process Temperature

-40℃~130℃(Standard type)
-40℃~250℃(High temperature type)

Process pressure -0.1~4.0 MPa (Flat flange)
-0.1~0.3MPa (Universal flange)
Signal output

4~20mA /HART (2-wire / 4-wire)

RS485/ Modbus

Power Source

Two-wire (DC24V)

Four-wire(DC24V/AC220V)

Connection

Universal Flange

Protection Grade

IP67

Explosion-proof Grade

Exia IIC T6 Ga/Exd IIC T6 Gb

♦904

904.jpg Suitable for Medium

Solid material, Strong dust,easy to crystallize, condensation occasion

Measuring Range 80m
Frequency

26GHz

Accuracy

±15mm

Process Temperature

-40℃~130℃(Standard type)
-40℃~250℃(High temperature type)

Process pressure -0.1~0.3MPa
Signal output

4~20mA /HART (2-wire / 4-wire)

RS485/ Modbus

Power Source

Two-wire (DC24V)

Four-wire(DC24V/AC220V)

Connection

Thread, Universal Flange

Protection Grade

IP67

Explosion-proof Grade

Exia IIC T6 Ga/Exd IIC T6 Gb


♦906

906.jpg Suitable for Medium

Hygienic liquid storage, Corrosive container

Measuring Range 20m
Frequency

26GHz

Accuracy

±3mm

Process Temperature

-40℃ ~ 130℃

Process pressure -0.1~4.0MPa
Signal output

4~20mA /HART (2-wire / 4-wire)

RS485/ Modbus

Power Source

Two-wire (DC24V)

Four-wire(DC24V/AC220V)

Connection

Flange

Protection Grade

IP67

Explosion-proof Grade

Exia IIC T6 Ga/Exd IIC T6 Gb



Small Intelligent Water Gauge Radar Level Transmitter For Solid And Liquid 6



The sound wave is a mechanical wave with a density of 40; gas, liquid and solid 41; propagation depends on the influence of the medium, temperature and pressure on the measurement. Need temperature compensation. Temperature and pressure measurement are generally not applicable. First of all, the ultrasonic level gauge has a temperature limit. Generally speaking, the temperature of the probe cannot exceed 80 degrees, and the propagation speed of sound waves is greatly affected by temperature. Secondly, the ultrasonic level gauge is greatly affected by the pressure, generally within 0.3MPa, because the ultrasonic wave is emitted by the vibration of the piezoelectric material. When the pressure is too high, the sound part will be affected. Third, when the fog or dust in the measurement environment is large, the measurement effect is not good. The radar level gauge emits high-frequency pulses and propagates along the cable. When the pulse is in contact with the material surface, it is reflected by the receiver inside the instrument and the distance signal is converted into a material level signal. The electromagnetic wave is used as the detection signal, which is reflected to the interface as the dielectric constant changes. Electromagnetic waves can propagate in vacuum without being affected by changes in temperature and pressure. Therefore, it can be used in a high temperature and high pressure environment. The measurement of very low dielectric constant media is not applicable. The radar tube uses electromagnetic waves and is not affected by the degree of vacuum. It has a wide range of applications in terms of medium temperature and pressure. The emergence of high-frequency radar tubes makes the application range of radar tubes wider. Therefore, the radar tube is an

ideal choice for level measurement.
