63mm Dia Intelligent Electromagnetic Flow Meter Dn100 Brand Metry
1 Piece/Pieces
MOQ
$150.00 - $350.00 / Pieces
Price
63mm Dia Intelligent Electromagnetic Flow Meter Dn100 Brand Metry
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: VACORDA
Certification: CE/TUV/ISO9001/SGS
Model Number: HKLD
High Light:

electromagnetic water flow meter

,

electromagnetic flow sensor

Payment & Shipping Terms
Packaging Details: wooden box
Supply Ability: 200 Piece/Pieces per Month
Specifications
Product Name: 63mm Dia Intelligent Electromagnetic Flow Meter Dn 100 Brand Metry
Medium: Sewage, Water, Conductive Liquid
Power Supply: 220VAC/24VDC/Battery
Output: 4-20mA /4-20mA + Hart
Material: 316L, Ti, Pt, Etc.
Certificate: ISO9001:2000
Product Description

63mm Dia Intelligent Electromagnetic Flow Meter Dn 100 Brand Metry

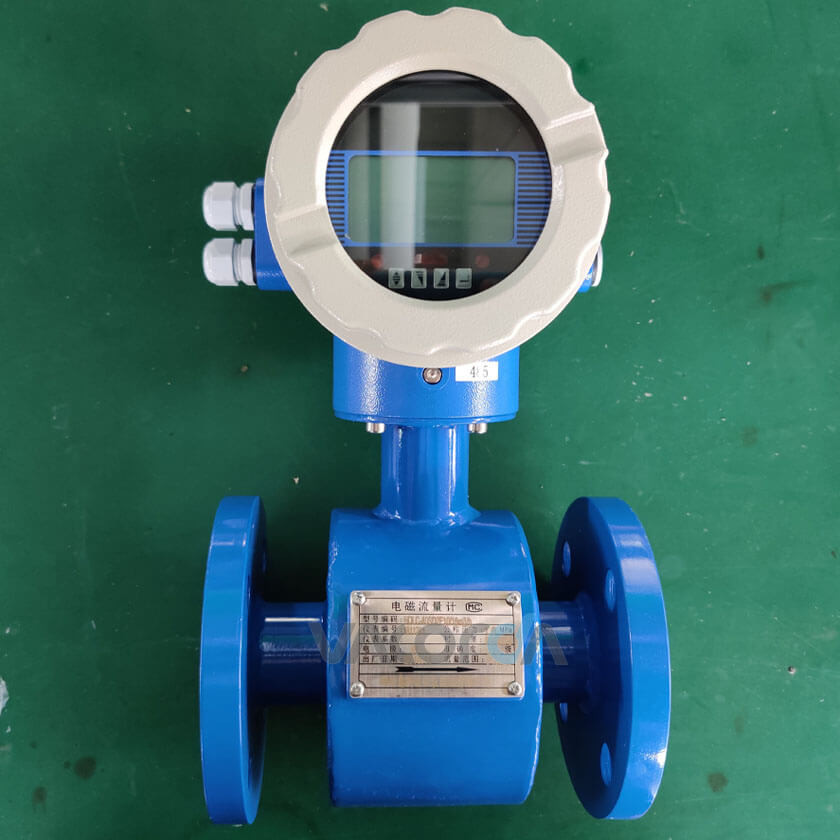

63mm Dia Intelligent Electromagnetic Flow Meter Dn100 Brand Metry 0
HKLD type intelligent electromagnetic flowmeter is a fully intelligent electromagnetic flowmeter developed by our company using the most advanced technology at home and abroad. Its electromagnetic converter core adopts high-speed central processing unit. The calculation speed is very fast, the precision is high, and the measurement performance is reliable. The sensor adopts non-uniform magnetic field technology and special magnetic circuit structure, the magnetic field is stable and reliable, and the volume is greatly reduced, the weight is reduced, and the flowmeter is characterized by small flow.

Application
Due to its unique advantages, it is widely used in the fields of petroleum, chemical industry, steel, light industry, sewage processing, environmental protection, water conservancy project and pharmacy to measure the volume flow of the conducted liquid mediums, such as acid, alkali, salt solution and so on.

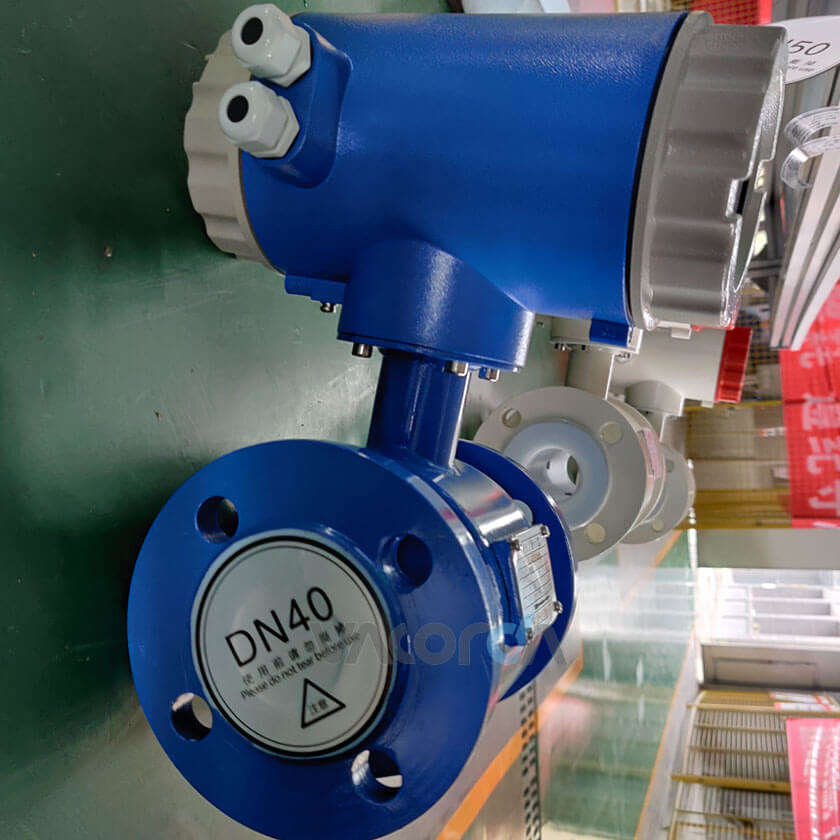

63mm Dia Intelligent Electromagnetic Flow Meter Dn100 Brand Metry 1

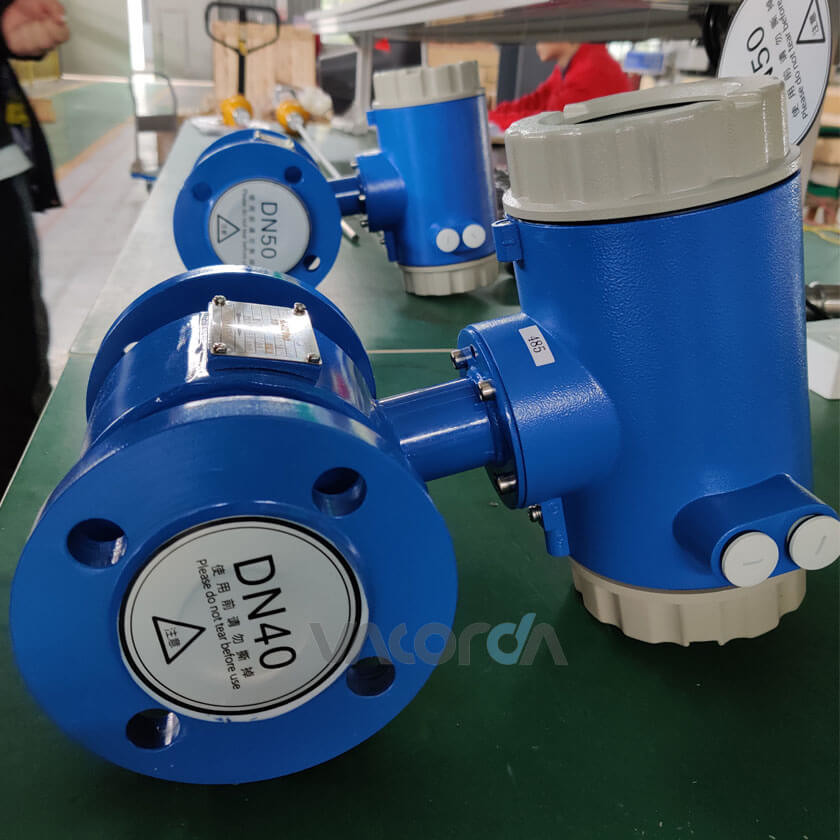

63mm Dia Intelligent Electromagnetic Flow Meter Dn100 Brand Metry 2
Features
1. No moving and blocked flow parts in the pipeline, almost no additional pressure loss in the measurement.
2. Measurements results are independent of physical parameters, such as flow distribution, fluid pressure, temperature, density and viscosity.
3. Using 16-bit embedded processors with fast speed and high accuracy, enhancing the stability of measurement.
4. Anti-interference, reliability, measurement range up to 150:1.
5. Ultra low EMI switch, wide range of power supply voltage.

Product Parameters

Product Name

Electromagnetic Flowmeter

Repeatability error

+/-0.1%

Accuracy class

0.5 class, 1.0 class

Measured medium temperature

Common rubber lining: -20~+60 ° c

High temperature rubber lining: -20~+90 ° c

PTFE lining: -30~+100 ° c

High temperature vinyl lining: -30~+180 ° c

Rated working pressure

pipeline: DN10~DN65: ≤ 2.5MPa;DN80~DN150: ≤ 1.6MPa;
DN200~DN1200: ≤ 1.0MPa

Flow rate range

0.3~15m/s

Measured fluid conductivity

≥5μs/cm liquid

Output

4~20mA / 4~20mA + Hart

Electrode material

316L, titanium (Ti), tantalum (Ta), Hastelloy (H), Platinum
(Pt) or other special electrode materials

Working power supply

85~265VAC / 24VDC / Battery

Straight pipe length

pipe: ≥ 5DN in the upper reaches, downstream of greater than or equal to 2DN

Connections

Flange

Protection grade

standard: IP65; IP68(optional)

Explosion-proof mark

mdllBT4


Deatail Images
63mm Dia Intelligent Electromagnetic Flow Meter Dn100 Brand Metry 363mm Dia Intelligent Electromagnetic Flow Meter Dn100 Brand Metry 4
The upper and lower limit alarms indicate that the output current and the output frequency or pulse are all out of limits. The flow range to change the large and small, the revocation of the upper and lower limit alarm.

The affirmation of the clients is the driving force for our progress, make efforts to develop new technologies, improve product performance, and adopt the high-quality materials, etc. To meet the customer demand is the first thing of VACORDA instruments, and pay attention to the high quality, guarantee the clients a pleasant user experience. More information please continuous concerning our official website:http://www.vacorda.com or just feel free to contact us.
