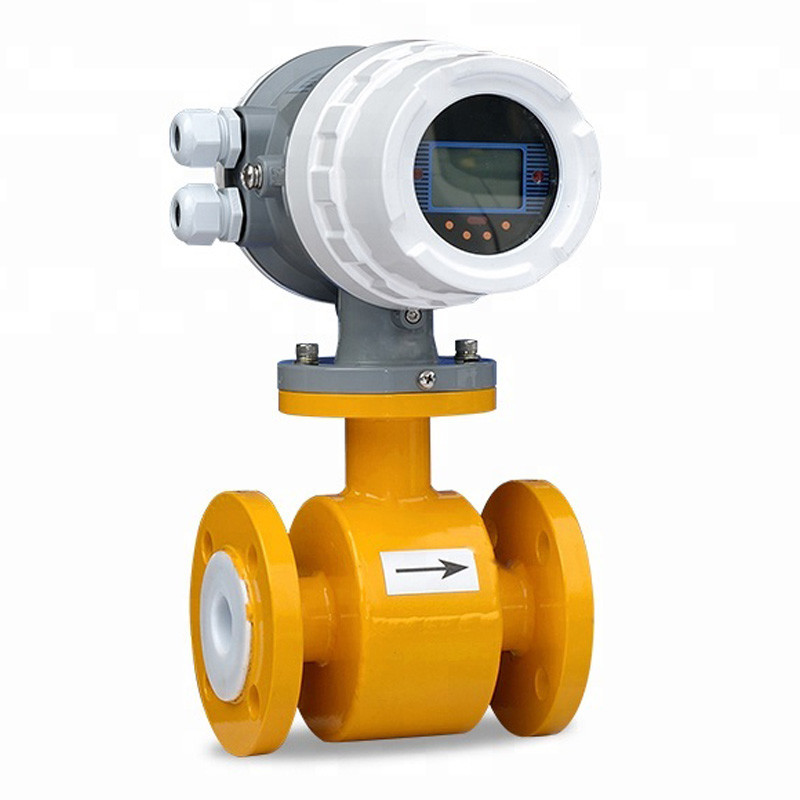

DN10~DN2200 Electromagnetic Water Flow Meter Fully Welded

1 Piece/Pieces
MOQ
$150.00 - $350.00 / Pieces
Price
DN10~DN2200 Electromagnetic Water Flow Meter Fully Welded
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Electromagnetic Water Flow Meter
Medium: Sewage, Water
Protection Grade: IP65 / IP 68(optional)
Measuring Range: 50Pa~10MPa
Lifetime: 5-10 Years For Electromagnetic Flowmeter
Pipe Size: DN10~DN2200
High Light:

DN2200 Electromagnetic Water Flow Meter

,

Fully Welded Electromagnetic Water Flow Meter

,

Sewage Electromagnetic Flow Meter

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: VACORDA
Model Number: HKLD
Payment & Shipping Terms
Packaging Details: wooden box
Supply Ability: 200 Piece/Pieces per Month
Product Description

DN10~DN2200 Electromagnetic Water Flow Meter Fully Welded



Electromagnetic Water Flow Meter Applicable to conductive liquid;
Widely used in industries such as petroleum, chemical engineering, iron and steel,food, power, paper making, water treatment,
petrochemical, medicine etc.

DN10~DN2200 Electromagnetic Water Flow Meter Fully Welded 0

A magmeter utilizes a set of coils and a pair of electrodes for flow measurement. The meter’s coils are driven by the transmitter with an applied current. Once powered, a magnetic field is formed between both coils. When the pipe is full and the fluid begins to flow, the force of the magnetic field causes the negatively and positively charged particles of the fluid to separate as they pass through the magnetic field. This separation causes an induced voltage between the electrodes and sensor.

DN10~DN2200 Electromagnetic Water Flow Meter Fully Welded 1

Electromagnetic Water Flow Meter Features
* Water, wastewater & utility applications
* Available in flanged & wafer styles
* Polyurethane, PTFE & Neoprene liner
* Line sizes available from 1/2in (15mm) to 48in (1200mm) Call us for sizes above 24 inches
* Fully welded construction Withstands sustained vibration
* Dual-compartment transmitter housing keeps electronics isolated from moisture and contamination
* Continuous meter verification confirms meter calibration without interrupting the process
* Electrode coating diagnostic indicates when preventive maintenance is needed, avoiding unexpected downtime
* High process noise diagnostic provides accurate readings to reduce process variability
* Printed report verifies meter performance for regulatory agencies



Electromagnetic Water Flow Meter Parameters

Product Name

Electromagnetic Flowmeter

Repeatability error

+/-0.1%

Accuracy class

0.5 class, 1.0 class

Measured medium temperature

Common rubber lining: -20~+60 ° c

High temperature rubber lining: -20~+90 ° c

PTFE lining: -30~+100 ° c

High temperature vinyl lining: -30~+180 ° c

Rated working pressure

pipeline: DN10~DN65: ≤ 2.5MPa;DN80~DN150: ≤ 1.6MPa;

DN200~DN1200: ≤ 1.0MPa

Flow rate range

0.3~15m/s

Measured fluid conductivity

≥5μs/cm liquid

Output

4~20mA / 4~20mA + Hart

Electrode material

316L, titanium (Ti), tantalum (Ta), Hastelloy (H),

Platinum (Pt) or other special electrode materials

Working power supply

85~265VAC / 24VDC / Battery

Straight pipe length

pipe: ≥ 5DN in the upper reaches, downstream

of greater than or equal to 2DN

Connections

Flange

Protection grade

standard: IP65; IP68(optional)

Explosion-proof mark

mdllBT4



Deatail Images

DN10~DN2200 Electromagnetic Water Flow Meter Fully Welded 2DN10~DN2200 Electromagnetic Water Flow Meter Fully Welded 3

Increasing energy demand also provides significant room for growth in advanced flowmeters, especially for ultrasonic flowmeters and Coriolis flowmeters. Transportation monitoring is the fastest growing application of Coriolis and ultrasonic flowmeters in oil and gas applications. Oil prices continue to rise, the calculation of transmission precise becomes very important, and the wrong cost is particularly expensive. These flowmeters can provide the highest level of accuracy and reliability required, and become the mainstream choice for the oil and gas industry.
