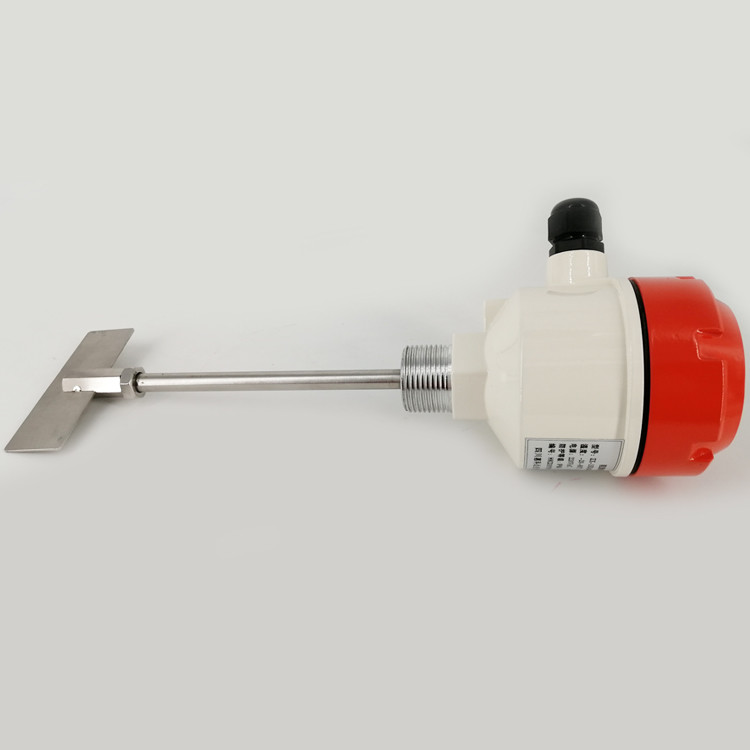

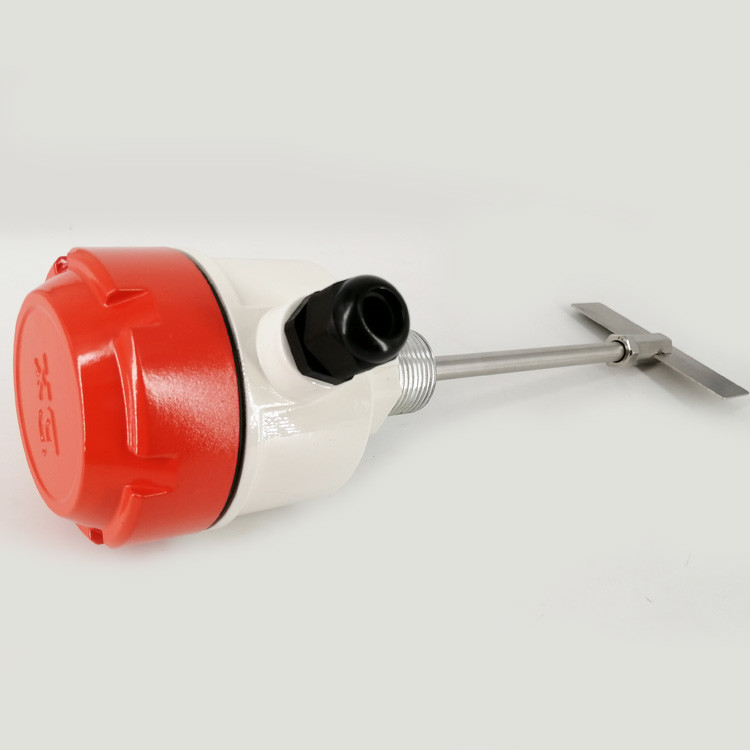

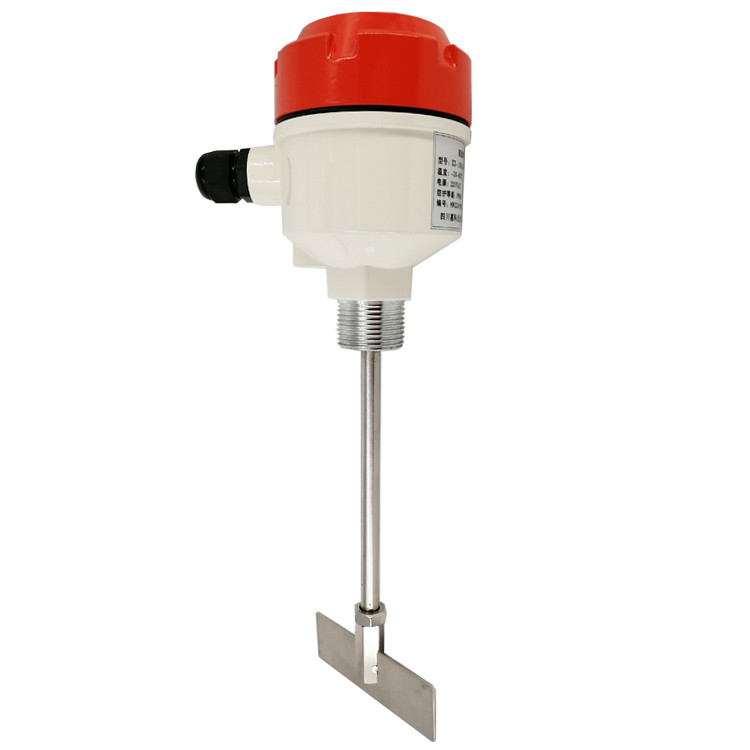

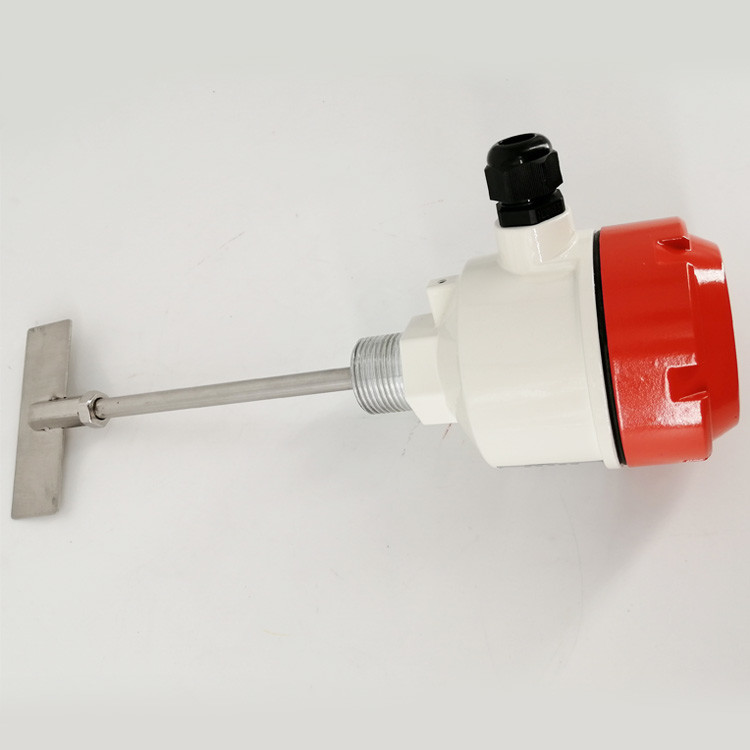

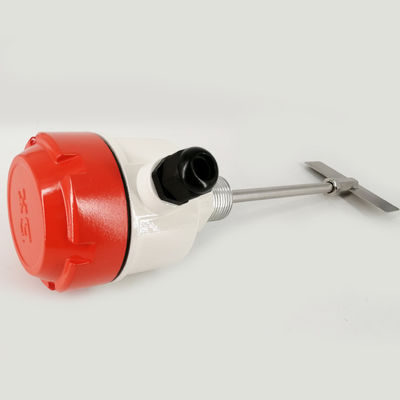

Powder Small Particles Level Rotary Paddle Level Switch Indicator Controlled

1 Piece/Pieces
MOQ
Negotiable
Price
Powder Small Particles Level Rotary Paddle Level Switch Indicator Controlled
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Powder Warehouse, Storage Tank, Power Industry In Various Industries
Working Power: 220VAC, 110VAC, 24VDC
Detection Method: Rotation Blade Resistance Detection
Output Signal: Switch Signal
Warranty: Eighteen Months
Blade Speed: 1rpm (rev / Min)
Insulation Resistance: ≥100MΩ
High Light:

Indicator Control Rotary Paddle Level Switch

,

Powder Level Rotary Paddle Level Switch

,

IP65 Rotary Level Switch

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Certification: CE/TUV/ISO9001/SGS
Model Number: UHC-CFF
Payment & Shipping Terms
Packaging Details: Wooden box
Supply Ability: 50 Piece/Pieces per Month
Product Description

Powder And Small Particles Level Indicator Control Paddle Rotary Level Switch



Product Description
The anti rotation switch uses the micro motor as the driving device, and the transmission shaft is connected with the clutch. When the anti rotation switch does not contact the material, the motor operates normally. When the blade of the anti rotation switch contacts the material, the motor stops rotating, the detection device outputs an electrical signal, and cuts off the power source to stop rotating at the same time. When the material drops, the resistance of the blade of the anti rotation switch disappears, and the detection device returns to the original state by relying on the torsion spring

.

Features
1, with overload protection to prevent motor damage
2. Good sealing performance, strong overload capability and large output contact capacity.
3. The torque is stable and adjustable. According to the different specific gravity, the sensitivity of the switch can be adjusted by adjusting the tension of the spring.
4, special design blades can be used for low density materials



Scope of application
Powder warehouse, storage tank, power industry in various industries: coal transportation, ash removal system (ash bucket, warehouse pump, ash warehouse). Such as: cement plant, flour cans, packaging hoppers, various raw material silos, batching mixing tanks, wood chip bins, liquid tanks, etc.



Technical Parameters

Detection method: rotation blade resistance detection
Blade speed: 1RPM (rev / min)
Torque: 1.0 kg x cm
Contact capacity: 250VAC/10A 1 SPDT (single pole double throw)
Material specific gravity: ≥0.5g/cm3
Working temperature: -10 ° C ~ +80 ° C (up to 400 ° C)
nsulation resistance: ≥100MΩ
Dielectric strength: 1500V/1min
Protection level: IP65
Working power: 220VAC, 110VAC, 24VDC
Power consumption: 4 W

Powder Small Particles Level Rotary Paddle Level Switch Indicator Controlled 0Powder Small Particles Level Rotary Paddle Level Switch Indicator Controlled 1
