OEM 4~20mA Digital Borehole Water Tank Level Indicator

1 Piece/Pieces
MOQ
Negotiable
Price
OEM 4~20mA Digital Borehole Water Tank Level Indicator
Features Gallery Product Description Request A Quote
Features
Specifications
Material: PTFE Lined; SS304; 316L; PP Etc
Pressure: PN2.5 ~ PN40
Medium: Water, Oil, Chemical Fluid Etc.
Temperature: -190°C~200°C
Warranty: Eighteen Months
Product Name: OEM Supplier Water Tank Level Indicator
Color: Red/white; Green/white Flap Indicator
Installation Form: Side-side Mounted; Top Mounted
Specification: Standard And Customized
Delivery Time: 7~15 Days
Port: Shanghai/Shenzhen
High Light:

Borehole Water Tank Level Indicator

,

20mA Water Tank Level Indicator

,

20mA digital water tank level indicator

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Certification: CE/TUV/ISO9001/SGS
Model Number: UHC-CFF
Payment & Shipping Terms
Packaging Details: Wooden box
Supply Ability: 50 Piece/Pieces per Month
Product Description

OEM Supplier 4~20mA Digital BoreholeWater Tank Level Indicator

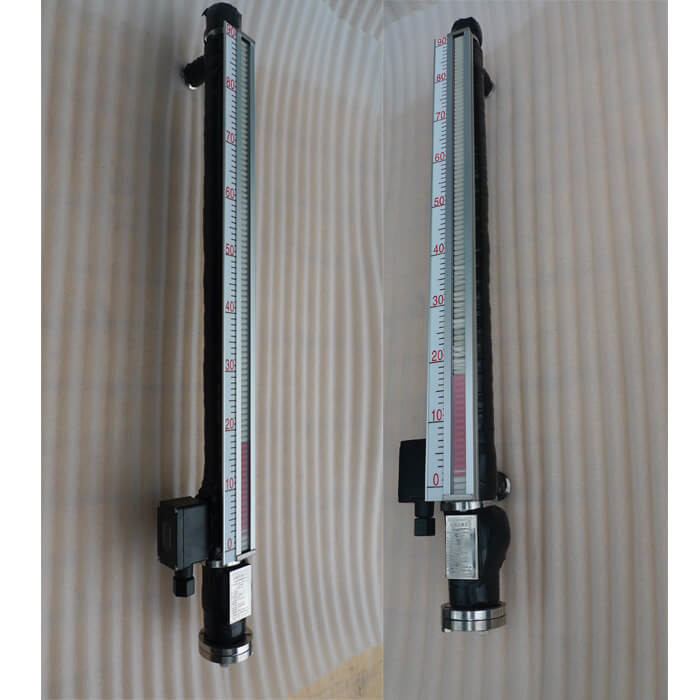

OEM 4~20mA Digital Borehole Water Tank Level Indicator 0

Product Description

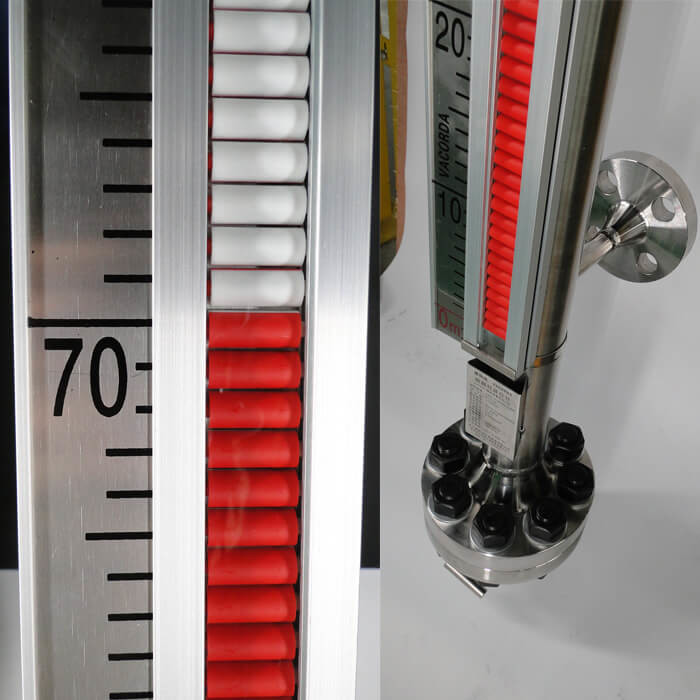

The UHC magnetic liquid level gauge is made up of measuring body,dual-colored display cylinder, ruler, top&low flange,magnetic ball and transmitter (4-20mA).Based on buoyance principle,the magnetic ball in the body of the level gauge is up or down with the liquid level changing and makes dual-colored turning to show the level of medium. Each cylinder is with two-color axisymmetric structures.The distance of two cylinders is 10mm. Red side of display cylinder indicates liquid and white side display cylinder indicates air. Besides measuring liquid level,it also could measure the interface of the two kinds of liquid.



Product Features

Simple structure, good stability, reliability and durability.
• Isolated medium, indicator, transmitter and switch
• Wide range of operating pressure: vacuum to 42Mpa
• Wide range of operating temperature: -190℃ to 425 ℃
• Independent of medium’s physical and chemical states.
• SPST or SPDT available
• Optioning float level transducer or capacitive two-wire level transducer to transmit 4-20mA DC signal (or HART) and realize remote control and measurement.
• Two-wire level transducer can be with 0.56" LED digital indicator for night observation.



Principle of the remote magnetic flap level gauge
Because the remote magnetic flap level gauge is composed of a magnetic flap level gauge and a reed remote transmitter, combining the two components of the magnetic flap level gauge &1 introduces the working principle of the magnetic flap level gauge. The basic type of magnetic flap level gauge is a magnetic flap level gauge, also known as a magnetic float level gauge. Based on the structure of the connector, the principle of buoyancy and the magnetic coupling characteristics, real-time measurement of the liquid level is realized. When the liquid level in the measured container rises or falls, the magnetic float used to sense the change of the liquid level in the main measuring tube will also rise or fall. The permanent magnet steel in the float drives the magnetic flap outside the main measuring tube to flip 180&; 180 flux magnetic coupling; the two sides of the valve are painted with different colors (usually red and white) to indicate the position of the liquid level. When the liquid level in the container rises, the valve changes from white to red. When the liquid level in the container drops, the valve changes from red to white. The red and white junction of the indicator is the actual height of the liquid level in the container, so as to realize the accurate measurement and local display of the liquid level.

OEM 4~20mA Digital Borehole Water Tank Level Indicator 1

Product Parameters

(1) Center-center distance:

150~6000mm

(2) Medium density:

More than 0.45g/cm3

(3) Nominal pressure:

PN2.5~PN40(x 0.1MPa)

(4) Material:

SS304, 316L or customized

(5)Operating temperature:

-190 ~ +42 °C

(6) Process connection:

DN20/RF/14(or customized)

(7)Indicator types:

    A: Al &ABS flap cylinder

B: Al flap plate

    C: PVC ABS flap cylinder

D: PP&ABS flap cylinder

    E: AL &LED

F: PP&LED

(8) Structure of top chamber:

1.Welding cover 2.welding cover with M14*1.5 plug screw 3.flange 4.flange with M14*1.5 plug screw 5.welding cover with DN20 flange 6.flange with DN20 flange 7.welding cover with air valve 8.flange with air valve

(9) Structure of bottom chamber:

1.flange cover 2.flange with drain plug screw 3.flange with DN20 welding tube 4.with DN20 flange 5.with needle/ball valve

(10)Protection class:

IP65

Application: Widely used in petroleum, chemical industry, oil field, pharmaceuticals industry, food, wine industry etc., suitable for level measurements under the environment of high/low temp., high pressure, strong corrosion, toxicity.

Note: Basic type, top mounted type, heat tracing type, LPG specialized type, anti-corrosive type, boiler steam specialized type etc, they have some differences in technical parameter. Different pressure has different flange specification.



Detailed Images

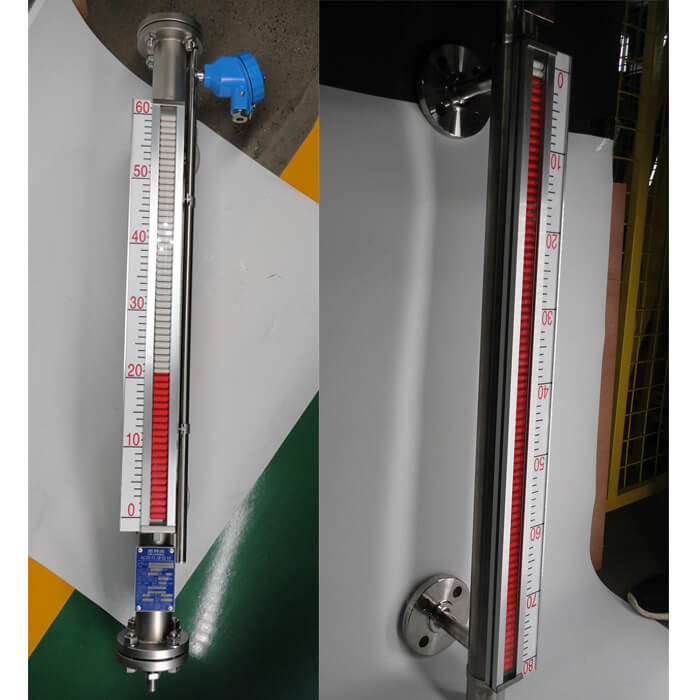

 OEM 4~20mA Digital Borehole Water Tank Level Indicator 2OEM 4~20mA Digital Borehole Water Tank Level Indicator 3OEM 4~20mA Digital Borehole Water Tank Level Indicator 4OEM 4~20mA Digital Borehole Water Tank Level Indicator 5



Workshop and Processing

RS485 4-20mA Automatic Magnetic Water Tank Level Meter With Factory Price

Sichuan VACORDA Instruments Manufacturing Co., Ltd.is a professional production-manufacturing enterprise specialized in designing, producing and marketing of instruments and apparatuses. Our company has been established for 23 years since 1997 to grow up to be a team of high-quality, united, hard-working and truth-seeking characters. Solid foundation has been established.
In 2017, we moved into our new factory whhich occupies the area about 20000 square meter, the workshop of 6900 square meter, R&D department of 1180 square meter, integrated office building of 1260 square meter, and we have established the high accuracy flow calibration lines.

RS485 4-20mA Automatic Magnetic Water Tank Level Meter With Factory Price
