Electrical Level Switch Controller Float Level Switch 250VAC/230VDC

10 Unit/Units
MOQ
Negotiable
Price
Electrical Level Switch Controller Float Level Switch 250VAC/230VDC
Features Gallery Product Description Request A Quote
Features
Specifications
Media Type: Liquid
Operating Temperature: -40~150℃
Certificate: ISO9001:2000
After Service: 20 Months
Material: 304
Pressure: 16MPa
Detect Point: 8 Switch Detect 8 Point
Sgnial Output: Switching Sgnial
Working Power: 250VAC/230VDC
Protec Grade: IP65
MAX Volume: 0.6A:60W(reed Pipe Type); 2A:200W(jiggle Switch)
Working Temperature Scope: -40~80℃ -40~120℃
Port: Shanghai/Shenzhen
High Light:

float switch fluid level controller

,

water tank level controller

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Model Number: level controller
Payment & Shipping Terms
Packaging Details: Wooded box.
Supply Ability: 2000 Unit/Units per Month
Product Description

Electrical liquid level control float level switch



Product Description
Electrical liquid level control float level switch consists of switch and magnetic float ball, which is based on the floating principle that utilizes magnetic float ball to make the relevant switch close or open according to the height changing of the liquid level, thus detecting the liquid level.


 Product features

1.Long life span, stable and reliable operation, easy installation, almost no maintenance

2. Independent of mediums physical and chemical status

3. Appliable for all kinds of bad medium environment with density ≥0.5g/cm³

4. Available for interface detection of mediums with two different densities

5. Wide application range. Pressure 0~PN160 (max. up to PN320), temperature -40~+150 ° c



 Product Parameters

(1) High temperaturre type:

≤150℃

(2)Protection grade:

IP65

(3)Working temperature scope:

-40℃~80℃  -40~120℃

(4)Anti-explosion grade:

EXia EXd

(5)Switch condition &Qty:

Transform type with one switch

(6)Installation Type: DN50/RF/PL(HG/T20592-2009;>PN100,HG/T20615-2009,DN≥65
(7)Float Diameter: PN≤6.3MPa,float diameter=45mm; PN>6.3MPa,float diameter=65mm

(8)Medium Density:

≥0.5g/cm3

(9)Connection :

M20*1.5 female thread

(10)Installation Depth:

80~300mm



Detailed Images

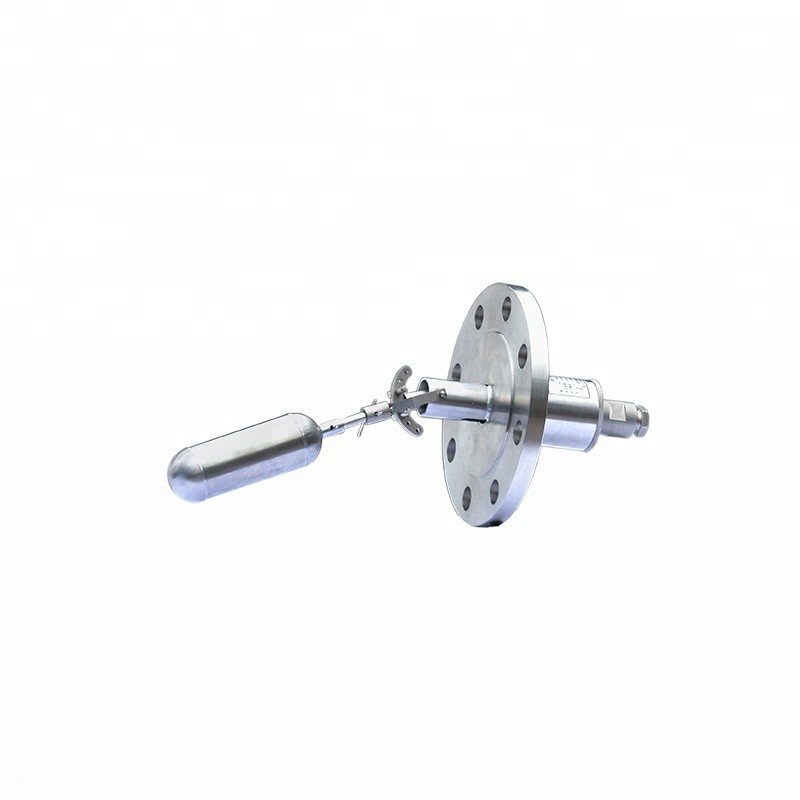

  Electrical Level Switch Controller Float Level Switch 250VAC/230VDC 0Electrical Level Switch Controller Float Level Switch 250VAC/230VDC 1
