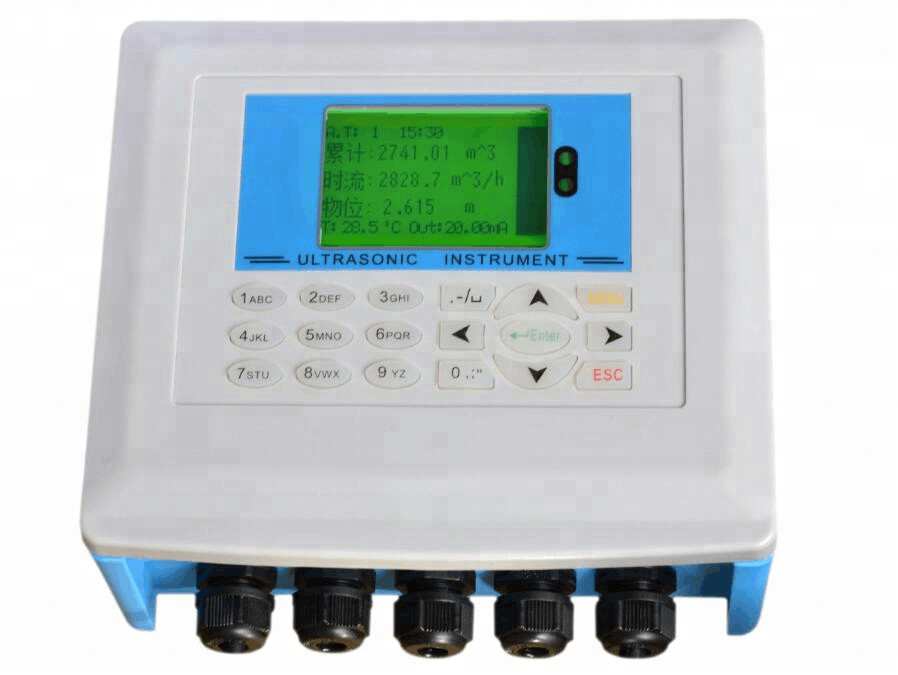

12VDC Ultrasonic Flow Meter With 0.03m/S-5.00m/S Flow Range Water Resistant
production description
This product is suitable for measuring the flow rate of various sizes. The measurement range is 0.01 ~ 32m/s. The measuring medium is a single stable liquid, such as water, sea water, sewage, alcohol and so on. The measuring material is uniform and dense pipe of steel, stainless steel, cast iron, PVC, gsteel and so on. Therefore, it can be widely used in various fields related to flowmeter. This product can be connected to the Internet of things through GPRS and Wifi. This product is certified by the state authority. and in accordance with the requirements of the national standard, The explosion-proof mark is ExdIIBT6Gb.
Features
1.Backup and restore setting parameters
2.Using wireless infrared remote control menu interface.
3.The output of analog output can be adjusted arbitrarily.
4.Width adjustable pulse output.
5.Supported isolation 4-20mA output.
6.Support HART protocol .(domestic first)
7.Support Bluetooth, GPRS, GPS communication Backup and restore settings.
8.Support custom serial data format .(when ordered)
9.Support storage mode can choose EEPORM, TFT memory card or USB storage.
10.It supports dual channel measurement function .(customizing more channels).
Product Parameters
| (1)Flow rate range | 0.01 ~ ±32 m/s |
| (2)Flow range | 0.1 to 99999999 m3/h caliber (mm) |
| (3)Diameter range | DN32-10000mm (selected sensor when order) |
| (4)Accuracy | Linearity is better than 0.5%, repeatability accuracy is better than 0.2%, up to 40 picosecond time difference measurement resolution, so that the measurement accuracy reaches + 1%. |
| (5)Pulse output | Isolated programmable OCT output |
| (6)Working voltage | Isolation of DC12-36V or AC180-250V |
| (7)Shell material | Cast aluminum /ABS (host), sensor (ABS). |
| (8)Installation | Wall hanging (main engine), magnetic sucker and hoop (sensor). |
| (9)Protection grade |
IP65 (host), IP65 (sensor) (customizable higher protection level). |
