RS485 Ultrasonic Level Sensor Water Resistant With 1.5s Measure Cycle

1 Piece/Pieces
MOQ
Negotiable
Price
RS485 Ultrasonic Level Sensor Water Resistant With 1.5s Measure Cycle
Features Gallery Product Description Request A Quote
Features
Specifications
Measuring Range: 0~30m
Measure Cycle: 1.5s
Pressure Range: ±0.1MPa
Mode Of Indication: 4 Digit LCD
Parameter Set Up: 3 Induction Buttons
Beam Angle: 8°, 5° (3db)
Temperature Compensation: The Whole Range Is Automatic
Power Supply: DC20~32V
Working Temperature: -40℃~+75℃
Protect Grade: IP67
Port: Shanghai/Shenzhen
Product Name: RS485 Ultrasonic Level Sensor Water Resistant With 1.5s Measure Cycle
High Light:

ultrasonic level meter

,

ultrasonic fluid level sensor

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: VACORDA
Certification: CE/TUV/ISO9001/SGS
Model Number: HKD
Payment & Shipping Terms
Packaging Details: Carton
Supply Ability: 300 Piece/Pieces per Month
Product Description

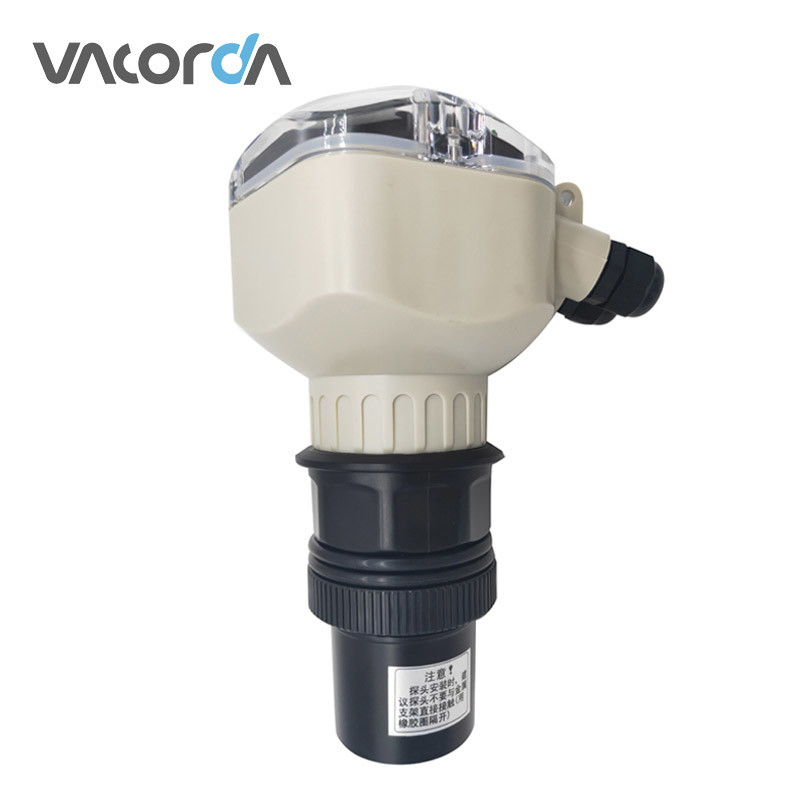

RS485 Ultrasonic Level Sensor Water Resistant With 1.5s Measure Cycle

RS485 Ultrasonic Level Sensor Water Resistant With 1.5s Measure Cycle 0

Application

ultrasonic water level sensor application

Product Description

ultrasonic water level meter

Product features

1. Safety: Do not use valves, pipes or joints when measuring toxic, explosive, corrosive, stress, volatile, and leaking liquids. It has no source of leakage and no containers for liquids and gases. very safe. Even if the instrument is damaged or maintained, it will not leak, poison or explode.

2. Hygiene: Do not touch liquids (making wine, beverages, milk production, storage tanks, pipes) in the inspection and monitoring program, and will not cause pollution.

3. Easy installation and maintenance: no fire, no clear box, no impact on production.

Technical Parameters:

(1)Power supply: DC20~32V
(2)Output: DC4~20mA
(3)Working temperature: -40℃~+75℃
(4)Mode of indication: 4 digit LCD
(5)Parameter set up: 3 induction buttons
(6)Mode installation: Whorl, Flange
(7)Accuracy: 0.2% Span(in air)
(8)Beam angle: 8°, 5° (3db)
(9)Pressure range: ±0.1MPa
(10)Protect grade: IP67

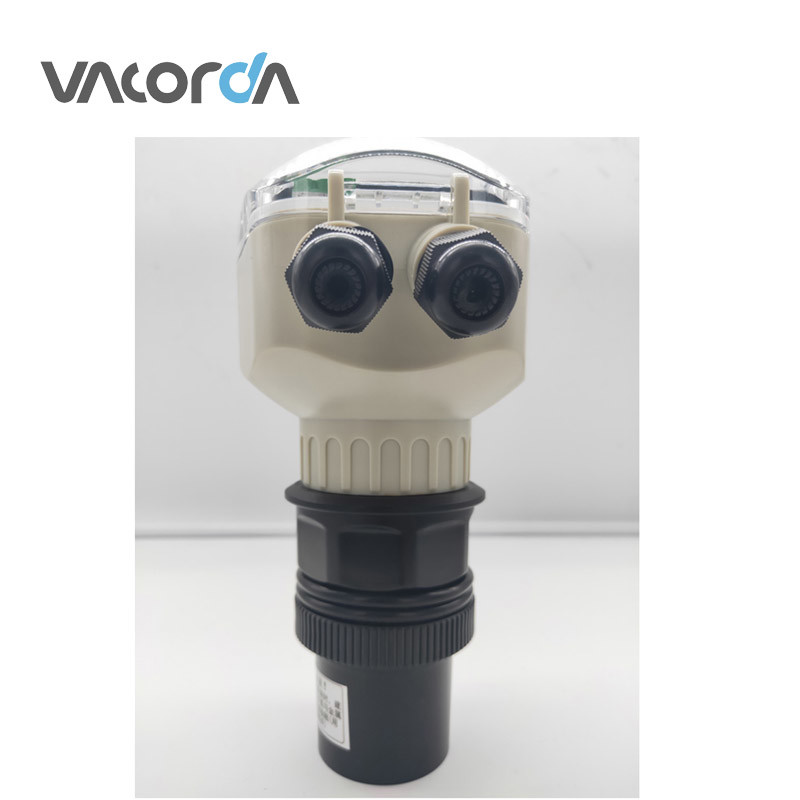

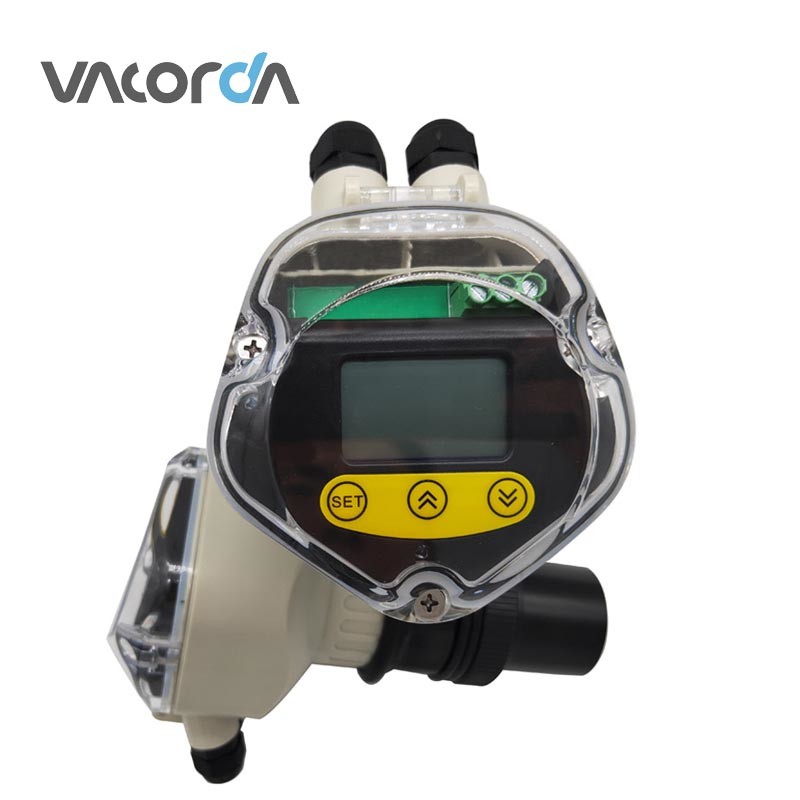

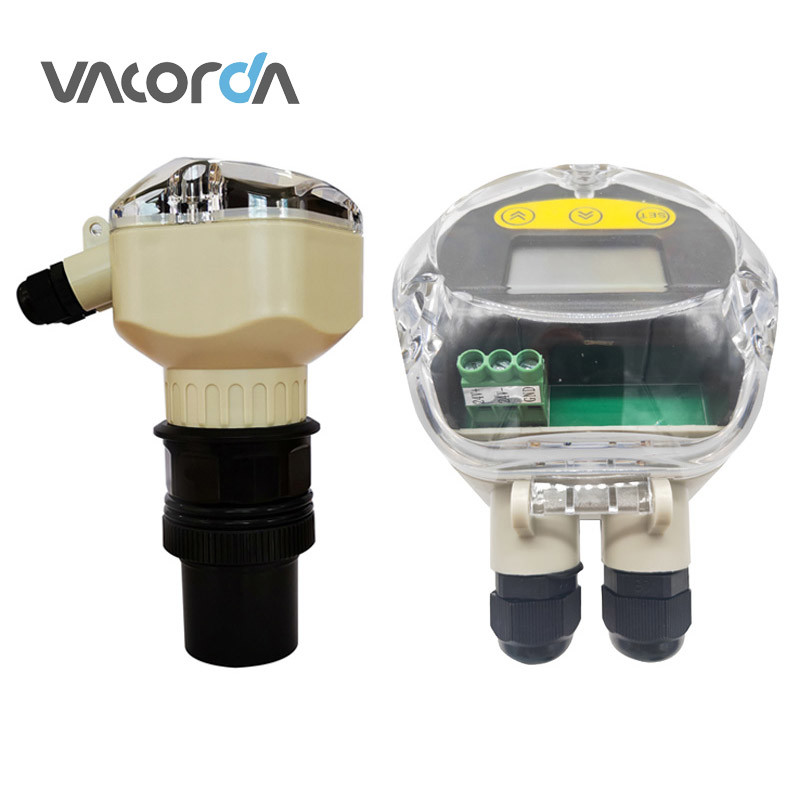

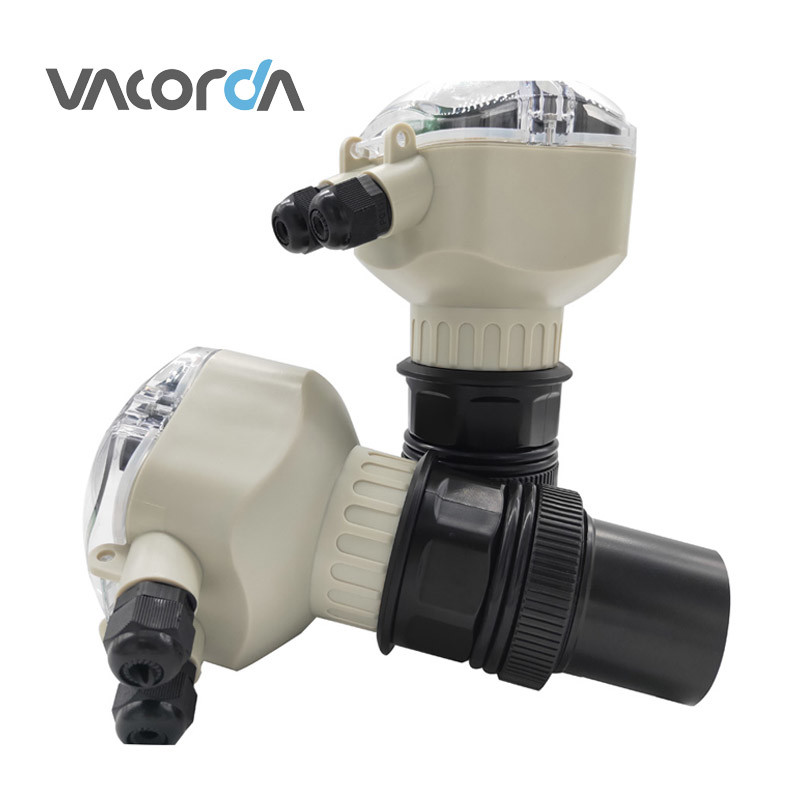

Detailed Images

fuel level ultrasonic sensor





level transmitter ultrasonic



For range of 20m, 30m, 40m, the size of orifice on tank should be more than that of DN200 flange. And the length of the connection pipe under the flange shou

Installation:

For tank:

For range less than 8 m, the size of orifice on tank should be more than of DN65 flange.

For range of 10m an12m, the size of orifice on tank should be more than that of DN100 flange. And the length of the connection pipe under the flange should be less than 20m

For range of 15m, the size of orifice on tank should be more than that of DN150 flange. And the length of the connection pipe under the flange should be less than 20m



For open pond:fixing stand should be needed.



Continuous non-contact level measurement with compact version;

  1. Integrated design, installed conveniently;
  2. Protected in the excessive voltage and current , protected in the thunder and lightning;
  3. The big show window of LCD is easy to debug and observe;
  4. Excellent anti-interference capability;
  5. Intellectual signal treatment technology, guarantee that the instrument meets various kinds of operating occasion
  6. All metal outer cover (IP67), airproof and alkali-resisting, meet the abominable environment.
